Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: NanYang
  • Model Number: Z4-450-41
  • Usage: mining,metallurgy,printing etc, Industrial
  • Certification: CE
  • Type: millauxilinry
  • Torque: optional
  • Construction: Series Wound
  • Commutation: Brush
  • Protect Feature: Explosion-proof, Waterproof
  • Speed(RPM): 500rpm
  • Continuous Current(A): 1200A
  • Output Power: 800kw
  • Voltage(V): 440v
  • Efficiency: 92%
  • Certificate: CE
  • Function: Driving
  • Structure: Synchronous Motor
  • Phase: Three Phase
  • Speed: Variable Speed
  • Shape: Linear
  • Power: DC

Packaging & Delivery

Packaging Details wooden case.
Delivery Time within 90 working days after sign the contract

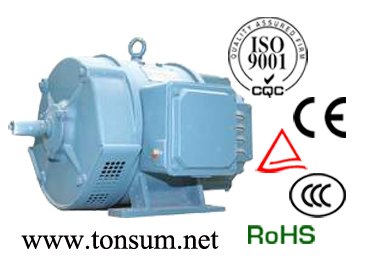

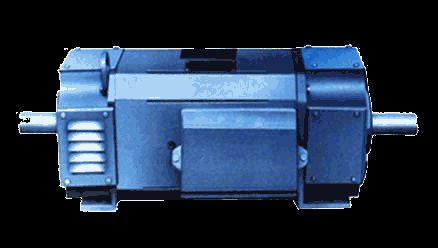

Z4 SERIES DC motors



(three phase induction motor)


auxiliary in metallurgical industry, metal machine-tool,

large output,good performance,ligh weight, high effciency and reliability.



Z4 SERIES DC motors are newly developed products of our works. The products are found wide use for prime mover in various, such as mill auxiliary in metallurgical industry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making, plastic extruding machine, etc.



1. Outline and mounting dimensions of the motors comply with IEC 72 standard, except for the axial distance between the mounting holes (dimension B).



2. Performance and technical requirements of the motors can be checked in accordance with IEC34-1 standard of the International Elector Technical Commission, or DIN 57530 Norm of the Deutsche Industries-Norm.



3. The motors are class F insulated, with reliable insulating construction and impregnating process, ensuring stable dielectric performance and excellent hear dissipation.



4. The motors possess the features of small size, good performance, light weight, large output, high efficiency and reliability, being able to match the current international advanced level



5. The motor can be lastingly operated form fully controlled three-phase bridge without a smoothing reactor. Motors for 160V may be operated on single-phase bridge thyistor. In that case, a smoothing reactor, whose inductance is specified in the relevant technical date, should be inserted in the armature circuit to suppliers ripple current.

Step Angle :

1.8 Degree

Step Angle Accuracy:

±5%  (full step, no load)

Resistance Accuracy:

±10%

Inductance Accuracy:

±20%

Temperature Rise:

80DegreeC Max. (rated current,2 phase on)

Ambient Temperature:

-20~+50DegreeC

Insulation Resistance:

100M(Ohms) Min. ,500VDC

Dielectric Strength:

500VDC for one minute

Shaft Radial Play:

0.02Max.  (450 g-load)

Shaft Axial Play:

0.08Max.  (450 g-load)

Max. radial force:

75N   (20mm from the flange)

Max. axial force:

15N

Holding Torque:

3.9~18
